Default Custom Shock Bracket Question

i have a question.. ive come up with an idea to make a shock bracket that makes the front shocks mount up like the rear ones. making it easier for people with lifts to find shocks. plus the same shocks could be used front and rear. itll also provide a little lift for the shock to account for a lift kit, in my case coil spacers.

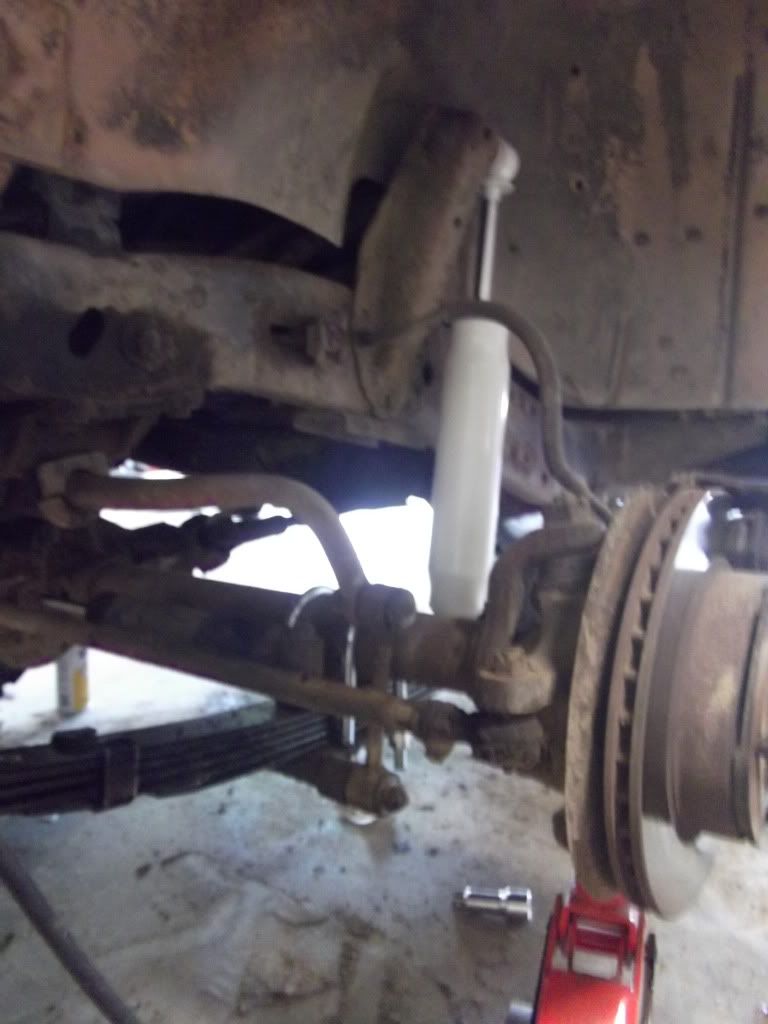

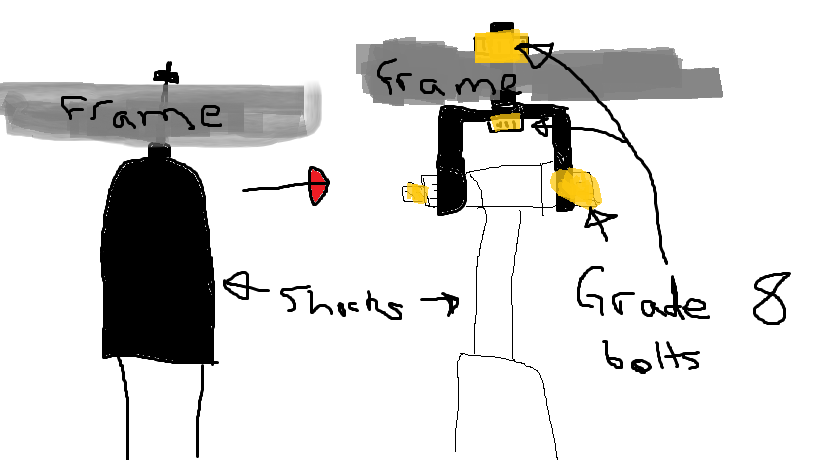

please dont bag on my artwork. the brackets would be made out of strong steel, and used with grade 8 bolts to prevent breaking. itd convert the shock mount to be used with a shock like this.

heres where the idea came from
http://sfbay.craigslist.org/sby/pts/2614350664.html
but mine would be waay more heary duty, thicker and stronger.

whatcha guys think?
