Okay guys this is my first real interior mod so go easy on me. I just bought some Hella 500FF lights and I plan to be getting more. Because of this I want to get a switch panel so it looks uniform. I know nothing about electricity and I was wondering if this panel would be able to handle two lights per switch.

http://www.wiringproducts.com/contents/en-us/d514.html
4 Toggle Compact Switch Panel
3rd one on the page

Thanks guys
__________________
1999 Ford Ranger XLT 4wd, 4.10s, Line-x, Rollbar, Throttle Cable Mod, Fog Light Mod, Hella 500 FF x3, Hella Stone Shields Painted Black, Arrow Anttena, Ram Brush Guard, Alon's Maglight Mount, Tinted Tails, Infinity Speakers(2), Plastidip Rims, Stang Dome, More Coming!

Last edited by PKidd; 06-20-2011 at 09:36 AM.
Reply With Quote
  #2
Old 06-20-2011, 09:34 AM
doyouquaxu doyouquaxu is offline
Almost ******

Join Date: Mar 2011
Posts: 7,480
Default Re: Switch Panels

yes. but why not use the wiring harness and switch supplied by hella, and make your own switch panel?
__________________
Why does everyone think prerunners just jump stuff?


Please click HERE to watch this video!
Reply With Quote
  #3
Old 06-20-2011, 10:40 AM
buggman buggman is offline
Do not touch the trim!

Join Date: Aug 2010
Posts: 3,018
Default Re: Switch Panels

Yeah, those panels are waaaaaaay to expensive for my tastes...

If you have an aftermarket stereo, you could use one of my textured abs panels to go over your radio & mount your switches there.



It gives a factory look & I guarantee it will be a TON cheaper.

Another option would be to install the switches on the right hand side of your radio bezel or mod a bezel to hold more oem fog switches like mine:



(shameless plug)
I also mod radio bezels & make wiring kits for the oem fog switches.
(end shameless plug)
__________________
'96 XLT, 4.0L, 4x4 Auto, Super Cab, K&N Filter, Dual Exhaust, 200a Alt, Clear Corners, BUGGMAN LED's, Expo Power Seats & Console, LED modded '01 Tails

Need LED's? Send me a PM
LINKS... Click 'em - - -> BUGGMAN PICS - - -BUGGMAN'S YouTube Channel - - -BUGGMAN'S FaceBook
Reply With Quote
  #4
Old 06-20-2011, 05:34 PM
TBarr TBarr is offline
Light Up

Join Date: Aug 2010
Posts: 1,854
Default Re: Switch Panels

Quote:
Originally Posted by buggman View Post

what do you have in the center of your switch panel?
__________________
2004 Step-side xlt4x4 4.0L 5-speed
Build Thread
37-14.5-15 Toyo M/T, 3 inch body liftProjected HID's, smoked tails, LED '06 corners, LED tails, LED back up lights
Intake, Chip, Straight Piped
Black interior with silver accents, LED Gauges, '04 Fx4 buckets, '99 expo full length console, Hurst Shifter
Reply With Quote
  #5
Old 06-20-2011, 06:31 PM
doyouquaxu doyouquaxu is offline
Almost ******

Join Date: Mar 2011
Posts: 7,480
Default Re: Switch Panels

it's a voltmeter, i asked him via pm earlier lol. i'm buying the supplies to do this myself, and i will do a write up
__________________
Why does everyone think prerunners just jump stuff?


Please click HERE to watch this video!
Reply With Quote
  #6
Old 06-20-2011, 06:41 PM
TBarr TBarr is offline
Light Up

Join Date: Aug 2010
Posts: 1,854
Default Re: Switch Panels

im thinkin i might need one of these panels when i do my light bar later this summer
__________________
2004 Step-side xlt4x4 4.0L 5-speed
Build Thread
37-14.5-15 Toyo M/T, 3 inch body liftProjected HID's, smoked tails, LED '06 corners, LED tails, LED back up lights
Intake, Chip, Straight Piped
Black interior with silver accents, LED Gauges, '04 Fx4 buckets, '99 expo full length console, Hurst Shifter
Reply With Quote
  #7
Old 06-20-2011, 10:05 PM
buggman buggman is offline
Do not touch the trim!

Join Date: Aug 2010
Posts: 3,018
Default Re: Switch Panels

Just let me know when you're ready (pm).

I have a few made up now that are blank, but I usually like to make them to the exact dimensions of your radio bezel for the best fit possible.

Mine is held on with some 3m outdoor foam tape & it isn't going anywhere.

You can drill or cut the panel with plain old tools, drill, dremel, x-acto knife, file, etc.

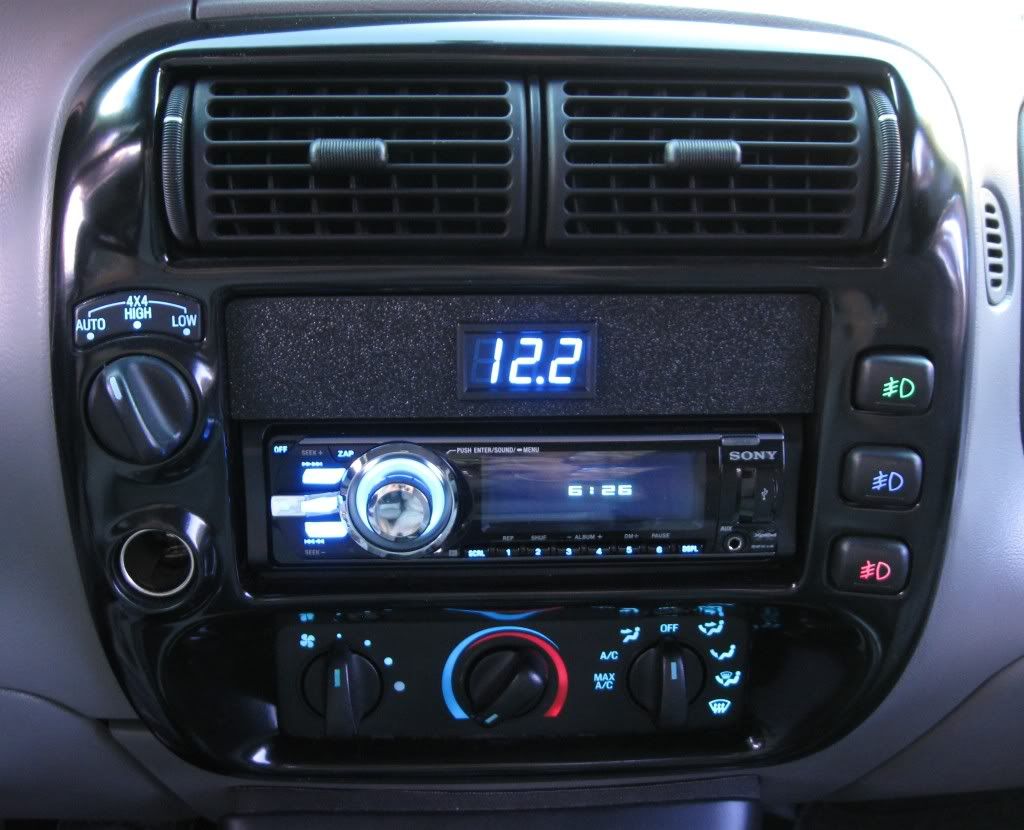

Here's my latest version installed:

I have my 3 oem fog switches controlling the lights that the switches in my old panel were, so I eliminated the switches from my new panel.
