Default bomb went off in the front end!

So after rebuilding the front end of my truck. ( ball joints, u-joints, tierod ends, wheel bearings, ext.) My 4wheele drive was working great. Until I was having problems earlier in the week with the auto hubs locking in. Then yesterday it was locked in and would disengage to 2wd. Today I took the hubs apart and it looked like a bomb went off inside the auto hubs( I have a '97 4.0) I knew that this generation ranger had problems with the auto hubs but I had no idea it would do that. So today I spent about and hour putting the warn manual hub conversion on my truck, and figured I would throw in some new fog lights while I was at it. I will post pictures of how it looks now and the exploded hub tomorrow.
Reply With Quote
  #2
Old 02-06-2011, 06:49 PM
Clinton Clinton is offline
Banned

Join Date: Mar 2010
Posts: 14,049
Default Re: bomb went off in the front end!

That blows man, I hope the manuals work for ya! Any chance you got before and after pics?
Reply With Quote
  #3
Old 02-06-2011, 07:01 PM
Finn611 Finn611 is offline
happiness is a warm gun

Join Date: Jan 2011
Posts: 689
Default Re: bomb went off in the front end!

Yeah I have a few from before. And I will get some recent pics tomorrow and post them all
Reply With Quote
  #4
Old 02-06-2011, 07:35 PM
Clinton Clinton is offline
Banned

Join Date: Mar 2010
Posts: 14,049
Default Re: bomb went off in the front end!

Sweet man, again sorry to hear about it blowing up on ya
Reply With Quote
  #5
Old 02-07-2011, 06:50 AM
TomN TomN is offline
<-----Needs moar liftz

Join Date: Jun 2010
Posts: 1,125
Default Re: bomb went off in the front end!

Pretty sure mine are shot as well. Same year and engine as you. I couldnt get out my driveway last night. Back tires where spinnin and front wasnt as all, while in 4X4. i took of the wheel and looked at the hub but idk what i should be looking for. lol I await the pictures, and how hard was it to switch em over to the manuals?
__________________
1997 Ranger XLT
4.0 4X4 Lotta Mods.

2001 Ford Crown Victoria Police Interceptor. 4.6 V8

Quote:
Originally Posted by richarddhoward View Post
my truck will rape your Honda.
Reply With Quote
  #6
Old 02-07-2011, 07:13 AM
edgeman4.0 edgeman4.0 is offline
THE COMPLAINT DEPARTMENT

Join Date: Nov 2009
Posts: 3,962
Default Re: bomb went off in the front end!

well... its tomorrow... and still no pics.
__________________
2001 Ford Ranger Supercab (4dr), Oxford White, 4.0 Sohc, 4x4, Manual trans (hurst equipped), 4:10's, 3" body lift.
Quote:
Originally Posted by Demon-FX4 View Post
The Edgeman sees his prey and strikes out from the darkness.
Quote:
Originally Posted by Rango88 View Post
Dont f+ck with Ch+ck
Reply With Quote
  #7
Old 02-07-2011, 07:17 AM
dixie_boysles dixie_boysles is offline
5.Oh All the way


Join Date: May 2009
Posts: 6,581
Send a message via Yahoo to dixie_boysles
Default Re: bomb went off in the front end!

__________________
2014 F150 SuperCrew XLT 4x4
275/65/17 Falken Wildpeak AT3W | Shorty Antenna | Tinted Windows | ProClip Phone Mount |5.0 v8 |Tow Package | Oxford White


Sold/Totaled: 2006 Ranger XLT 2D SuperCap 4x4 Torch Red
15x8 Pacer 164P Polished Wheels | 31x10.50 BFG ATs | Level II Tow Hooks | FX4 Red Insert Seats
Tinted Windows | 6000K HIDs | Kobalt Low Profile Toolbox | Pioneer Speakers
Reply With Quote
  #8
Old 02-07-2011, 09:02 AM
Finn611 Finn611 is offline
happiness is a warm gun

Join Date: Jan 2011
Posts: 689
Default Re: bomb went off in the front end!

here are some before.

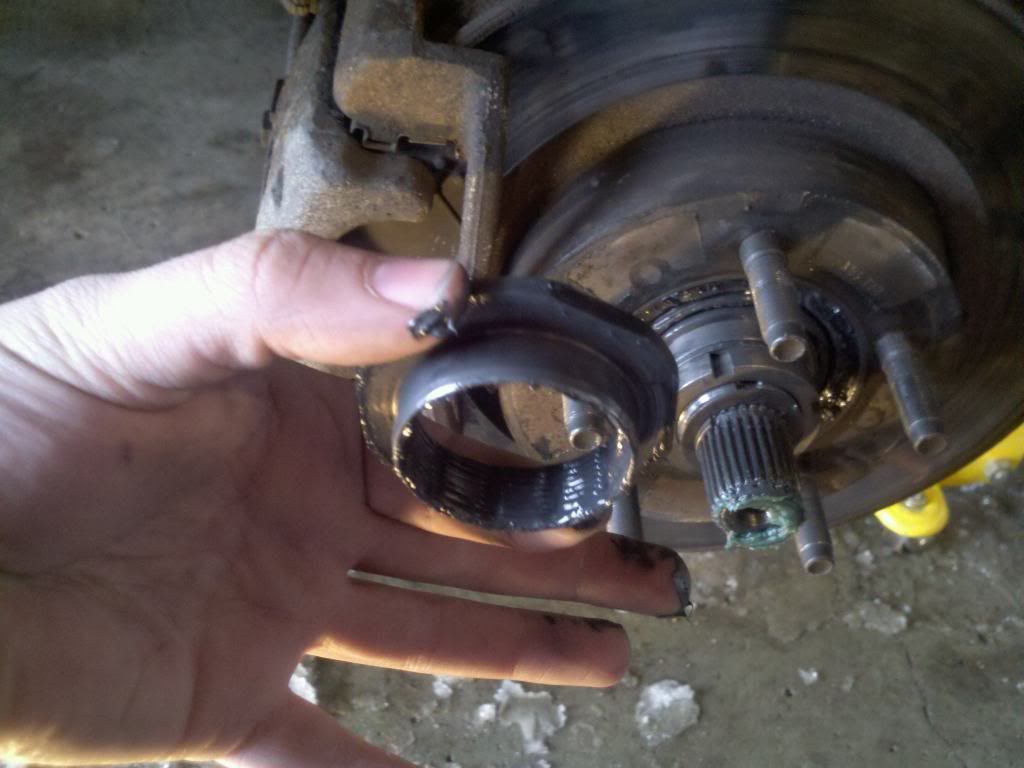

And the bad hub,




heres the process,
you pop the c-clip off(i call it the jesus clip because thats what i say when it goes flying), the pull off the inard workings of the hub( they just slide off).



then you have to use a small magnet to pull of the keeper pin that is holding the wheel bearing nut in place.



then you can undo the bearing nut by hand,

.

now that it is striped down you put the first nut from the tranfer kit on, this nut sets the wheele bearing( tourque it to about 30 lbs and then loosen it, then retighten it by hand, set the lock washer in place and then put on the last spacer nut. it say to torque it to 175 lbs but these are known to come loose with bigger tires so i took mine closer to 200-225.



then put the new hub on and bolt the tire back on.




and here are my fog lights that i picked up at walmart for $11 a piece



----------

i forgot. your going to need one of these sockets to tighten the tranfer kit nuts down, its was like $15 but you will need it if you ever need to take the front rotars off.

Reply With Quote
  #9
Old 02-07-2011, 07:33 PM
TomN TomN is offline
<-----Needs moar liftz

Join Date: Jun 2010
Posts: 1,125
Default Re: bomb went off in the front end!

If you dont mind me asking, how much you pay for the Warn set up? and where did you get it from?
__________________
1997 Ranger XLT
4.0 4X4 Lotta Mods.

2001 Ford Crown Victoria Police Interceptor. 4.6 V8

Quote:
Originally Posted by richarddhoward View Post
my truck will rape your Honda.
Reply With Quote
  #10
Old 02-07-2011, 08:08 PM
brinker88 brinker88 is offline
TTB man

Join Date: Aug 2010
Posts: 1,920
Default Re: bomb went off in the front end!

broncograveyard.com are the cheapest priced warns I've found.
__________________
1993 Ford Ranger Ext. Cab | stepside | 4x4 | 4.0L | Lifted | 35" BFG KM2s | MT Classic IIs | Dana 35/Disc 8.8 with 4.56's | Duals | Etc

RIP JASON
Reply With Quote
  #11
Old 02-08-2011, 01:45 AM
Finn611 Finn611 is offline
happiness is a warm gun

Join Date: Jan 2011
Posts: 689
Default Re: bomb went off in the front end!

I just went down to my local auto parts store. I believe it was $214 for the hubs and $63 for the conversion kit. Plus the $15 socket you need
Reply With Quote
  #12
Old 02-08-2011, 05:38 AM
brinker88 brinker88 is offline
TTB man

Join Date: Aug 2010
Posts: 1,920
Default Re: bomb went off in the front end!

http://broncograveyard.com/bronco/c-983


They are $175 here and the conversion kit's only $20
__________________
1993 Ford Ranger Ext. Cab | stepside | 4x4 | 4.0L | Lifted | 35" BFG KM2s | MT Classic IIs | Dana 35/Disc 8.8 with 4.56's | Duals | Etc

RIP JASON
Reply With Quote
  #13
Old 02-08-2011, 06:08 AM
TomN TomN is offline
<-----Needs moar liftz

Join Date: Jun 2010
Posts: 1,125
Default Re: bomb went off in the front end!

I can get the hubs off Advance auto parts for $150 after the Big 40 promo
__________________
1997 Ranger XLT
4.0 4X4 Lotta Mods.

2001 Ford Crown Victoria Police Interceptor. 4.6 V8

Quote:
Originally Posted by richarddhoward View Post
my truck will rape your Honda.
Reply With Quote
  #14
Old 02-08-2011, 07:03 AM
Finn611 Finn611 is offline
happiness is a warm gun

Join Date: Jan 2011
Posts: 689
Default Re: bomb went off in the front end!

I would have ordered them online, but I needed them that day so I could get it back on the road. I just went to the place that had them in stock
Reply With Quote
  #15
Old 02-08-2011, 01:39 PM
TomN TomN is offline
<-----Needs moar liftz

Join Date: Jun 2010
Posts: 1,125
Default Re: bomb went off in the front end!

I ordered them online, got the discount and will be icking them up in store in about 2 hours. I always do that when I need auto parts $100+. They normally have an online only promo.
__________________
1997 Ranger XLT
4.0 4X4 Lotta Mods.

2001 Ford Crown Victoria Police Interceptor. 4.6 V8

Quote:
Originally Posted by richarddhoward View Post
my truck will rape your Honda.
Reply With Quote
