Default My first fab: Front light bar

Just a few pics, more of a personal photo log than anything.
2x2" angle iron
33 1/2" overall length, 8" in between mount center holes, allowing for 1.5" space between each light, in this case Hella 500FFs, with 3/8" holes. With approx 4.75" left on the outside to allow for mounting of larger lights or accessories as I see fit later down the road.
The mounts are cut from the same piece of stock, measuring approx 2" across, with 3/8" mount holes for securing to my bumper using existing holes from my current lights.
It was cleaned with a wire wheel and then cut with a plasma cutter, then a lot of grinding and smoothing of rough edges.
I used shielded metal arc welding, or stick welding, to attach the brackets.
The beads are a little nasty still, and I plan on cleaning them up and perhaps doing some preliminary mounting this evening as time permits.
Anyway, here it is, in mostly chronological order:

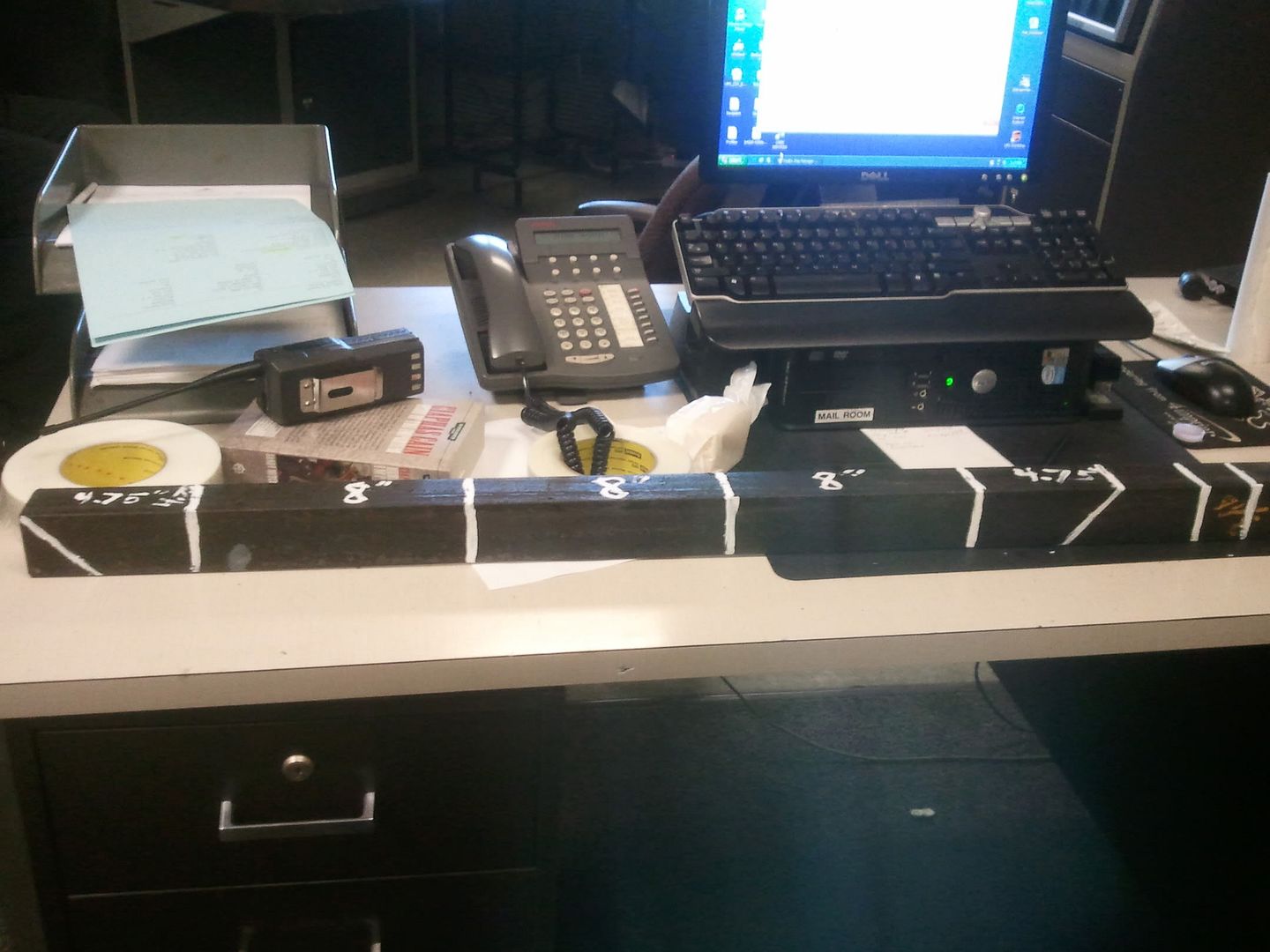

Raw stock, 2x2" angle iron, painted with some kind of nasty junk. Measurements are rough and exact measurements were done and scored prior to cutting.

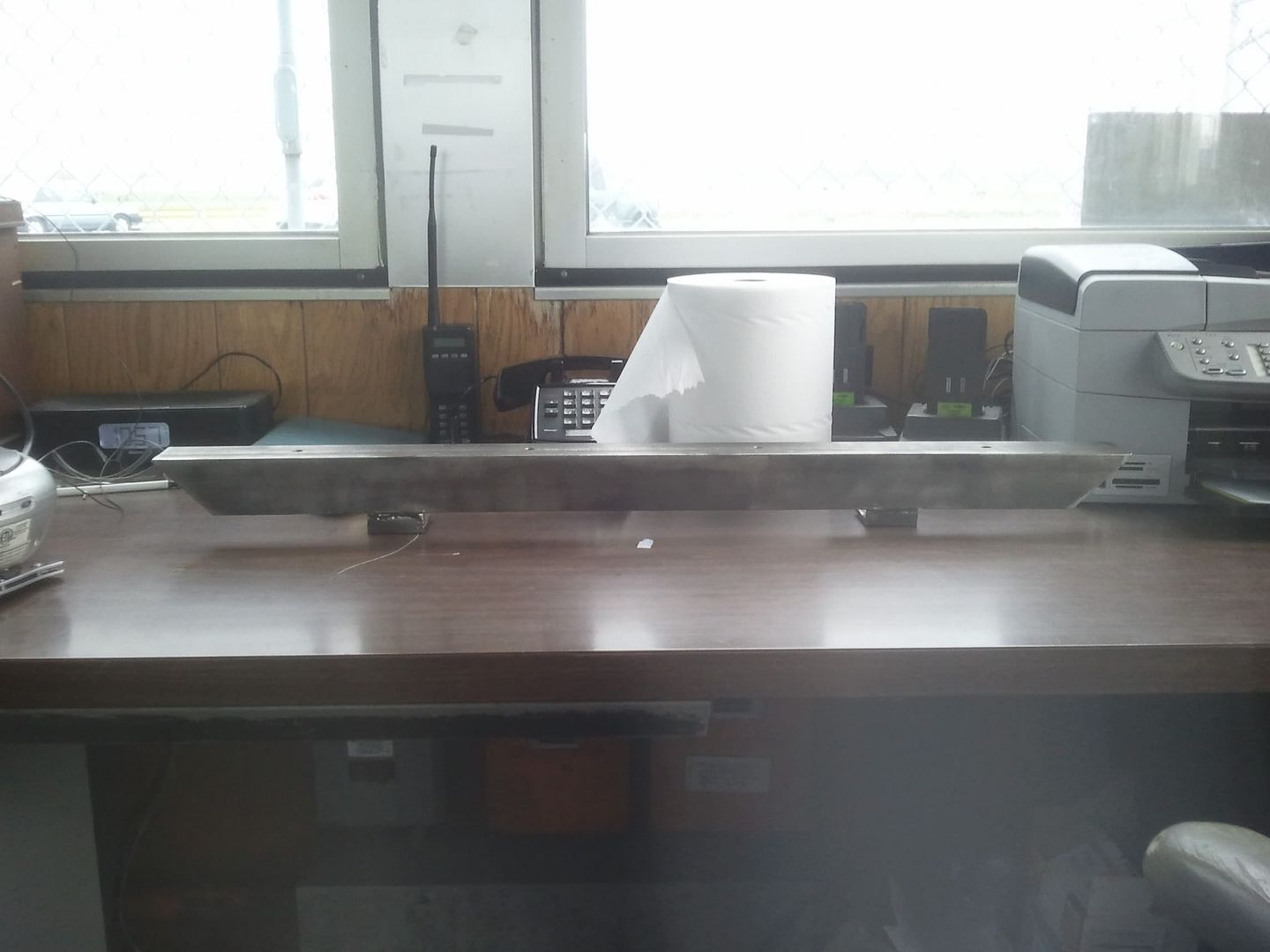

Post cut & rough polish. Before I mounted the brackets.

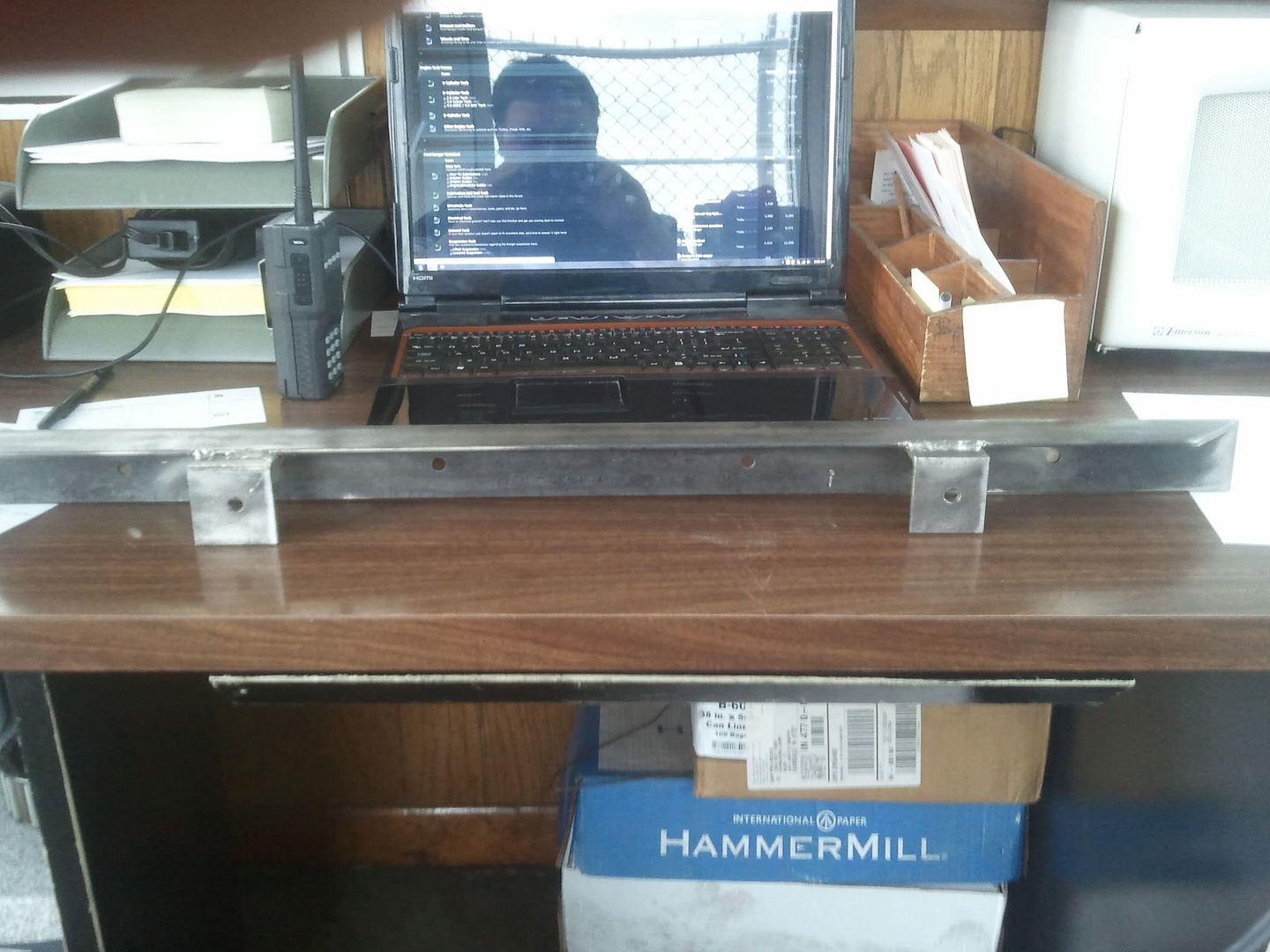

Bottom of bar, mostly finished construction, still needs cleanup on beads and a final good polish and shaping before permanent mount on my truck

Front view. DS mount is a little off, will likely heat and bend to make even.

Top view, showing mounting surface for lights as well as showing the top side of the brackets. The brackets stick out approx 1/4" behind the bar itself, due to plate thickness, will be negligible upon mounting.


Ill clean it up a bit more and paint it and then post some pics installed when it occurs.
