Default pic request: 06-up fog lights

i am looking for close up pics, of the honeycomb around the foglights, and how the lights mount up


thanks
__________________
2012 mustang premium v6 pony package
702 crew
XBGT:IKONIK MOPAR
Reply With Quote
  #2
Old 02-07-2010, 08:03 AM
STL STL is offline
...............


Join Date: May 2009
Posts: 23,398
Default






remove the bolt and the two metal clips and the fog light comes out. you can remove the clips with a pair of pliers
__________________
2005 Edge

Reply With Quote
  #3
Old 02-07-2010, 01:34 PM
FoMoCo FoMoCo is offline
RF.net ban camp founder

Join Date: Apr 2009
Posts: 1,816
Default

i think 06-up are different than 05 because they changed bumpers to the all plastic one instead of the steel one
__________________
2012 mustang premium v6 pony package
702 crew
XBGT:IKONIK MOPAR
Reply With Quote
  #4
Old 02-07-2010, 01:38 PM
STL STL is offline
...............


Join Date: May 2009
Posts: 23,398
Default

The ones in the picture are mounted to a plastic valance
__________________
2005 Edge

Reply With Quote
  #5
Old 02-07-2010, 01:48 PM
mjonesjr mjonesjr is offline
Is today the day?

Join Date: Feb 2010
Posts: 254
Default

The '06+ fog lights are the same as the '04-'05.
__________________
"The strongest reason for the people to retain the right to keep and bear arms is, as a last resort, to protect themselves against tyranny in government."
- Thomas Jefferson -

Support Our Troops!
Reply With Quote
  #6
Old 02-07-2010, 02:36 PM
FoMoCo FoMoCo is offline
RF.net ban camp founder

Join Date: Apr 2009
Posts: 1,816
Default

they do not mount the same, i believe they mount to the actual bumper bar, not the valance... there is nothing to bolt to on my valance
__________________
2012 mustang premium v6 pony package
702 crew
XBGT:IKONIK MOPAR
Reply With Quote
  #7
Old 02-07-2010, 02:49 PM
STL STL is offline
...............


Join Date: May 2009
Posts: 23,398
Default

That is because you have a non foglight valence. At least that is what I think why it is diffrent
__________________
2005 Edge

Reply With Quote
  #8
Old 02-07-2010, 02:53 PM
Fx4wannabe01 Fx4wannabe01 is offline
Ford Ranger Driver

Join Date: Sep 2009
Posts: 4,058
Default

Quote:
Originally Posted by FoMoCo View Post
they do not mount the same, i believe they mount to the actual bumper bar, not the valance... there is nothing to bolt to on my valance
04-05 and 06-07 fog lights are different part numbers. Even though the lense is the same, this would lead me to believe something is different between the two, like mounting.
__________________
'01 XLT disguised as a '03 Fx4 Level II.
Reply With Quote
  #9
Old 02-07-2010, 02:54 PM
99offroadrngr 99offroadrngr is offline
Banned

Join Date: Sep 2009
Posts: 945
Default

csb
Reply With Quote
  #10
Old 02-07-2010, 03:11 PM
STL STL is offline
...............


Join Date: May 2009
Posts: 23,398
Default



With the honeycomb insert still in the valance



__________________
2005 Edge

Reply With Quote
  #11
Old 02-07-2010, 03:26 PM
FoMoCo FoMoCo is offline
RF.net ban camp founder

Join Date: Apr 2009
Posts: 1,816
Default

06-07 fogs



this is what i got, i know its just a factory XL bumper, the honycomb pieces pop out to reveal fog light holes

before i took off the honeycomb panels on the bumper



nothing to hook to on the valance

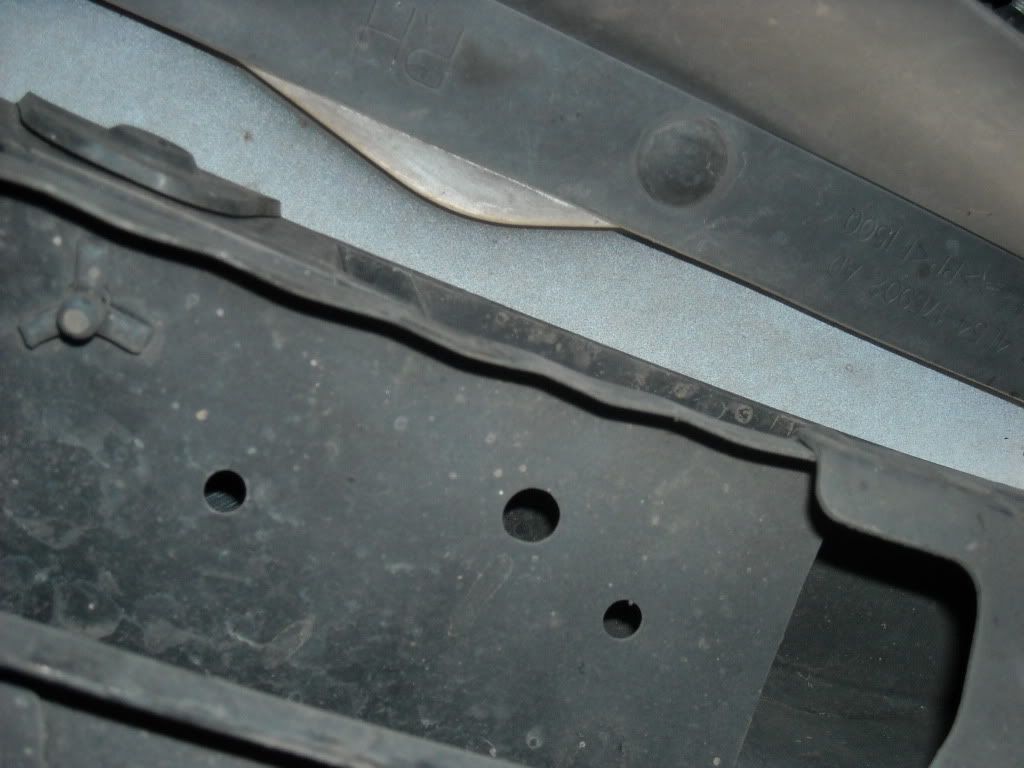

i suspect these are the mounting holes for the fogs
__________________
2012 mustang premium v6 pony package
702 crew
XBGT:IKONIK MOPAR
Reply With Quote
  #12
Old 02-07-2010, 03:36 PM
STL STL is offline
...............


Join Date: May 2009
Posts: 23,398
Default

See on mine looking from behind the bumper there are the 2 holes where the studs on the back of the fog light assembly go through

It just has the 2 nuts that go on the post then a 5/16 bolt that goes on the other side
__________________
2005 Edge

Reply With Quote
  #13
Old 02-07-2010, 05:58 PM
Fx4wannabe01 Fx4wannabe01 is offline
Ford Ranger Driver

Join Date: Sep 2009
Posts: 4,058
Default

Quote:
Originally Posted by FoMoCo View Post
06-07 fogs




nothing to hook to on the valance

i suspect these are the mounting holes for the fogs
Yeah...looks like a straight up bolt-on sorta dealio just like the 04-05 4x4 value pkg w/o fog swap. Those top two bolt holes look like a PITA though.



Oh yeah...I think you should nab Cory's old fogs, brackets, and hid kit, but idk what Carl want's for them. Hopefully they're still attached to the hacked up old valence of Cory's.
__________________
'01 XLT disguised as a '03 Fx4 Level II.

Last edited by Fx4wannabe01; 02-07-2010 at 06:01 PM.
Reply With Quote
  #14
Old 02-07-2010, 06:34 PM
FoMoCo FoMoCo is offline
RF.net ban camp founder

Join Date: Apr 2009
Posts: 1,816
Default

Quote:
Originally Posted by Fx4wannabe01 View Post
Yeah...looks like a straight up bolt-on sorta dealio just like the 04-05 4x4 value pkg w/o fog swap. Those top two bolt holes look like a PITA though.



Oh yeah...I think you should nab Cory's old fogs, brackets, and hid kit, but idk what Carl want's for them. Hopefully they're still attached to the hacked up old valence of Cory's.
he wanted $120 for the lights,and HIDs, with cut up brackets, but thats a little more than i am looking to spend right now, i am still working on B&R to let me near that 06 sport in their "restricted" yard

i can get new ones for $60 off of ebay for the pair
__________________
2012 mustang premium v6 pony package
702 crew
XBGT:IKONIK MOPAR
Reply With Quote
  #15
Old 02-07-2010, 06:46 PM
Fx4wannabe01 Fx4wannabe01 is offline
Ford Ranger Driver

Join Date: Sep 2009
Posts: 4,058
Default

psh....I knew he/they'd want just far too much for those. 100 TOPS imo without even knowing of hacked up brackets.
__________________
'01 XLT disguised as a '03 Fx4 Level II.
