Arrow Lightbars for Auxilary lighting?

I've been considering on ordering a lightbar or switching bumpers to a prerunner style. I'm leaning MUCH more to the lightbar ideal since I want to keep my fogs and the prerunner bumpers are way expensive. Does anyone have any info on Fabtech's lightbar or maybe others of like designs. I really have been unable to obtain any info for the Fabtech Lightbar aside from needing the Universal design fitment. I'd love to get the RCD Lightbar but unfortunately the one featured on their built ranger was a prototype and they scrapped the ideal of putting it in production.
__________________
2003 Ford Ranger FX4 Level II
- JBA Cat-back exhaust
- K&N 57 Series Intake
- Poweraid Throttle Body Spacer
Reply With Quote
  #2
Old 08-20-2009, 01:57 PM
geezmo2001 geezmo2001 is offline
My rangexplodeneer.

Join Date: Aug 2009
Posts: 247
Default

Waag light bars were the rage a little bit ago. Haven't really seen anything to appealing as of late.
__________________
2001 Extended cab Edge, 4x4, 4.0, 4.10 gears, 3" PA body lift, Heartthrob dual exhaust, Roush Thunderbolt signal mirrors, 8000k hid head/foglights, Mountaineer leather buckets, Xplorer shorty console, Alpine 9856 receiver, 10" type r sub in ported box, air box mod, throttle cable mod, Rancho R5000 shox, Scangauge II, plus many other things...
Reply With Quote
  #3
Old 08-20-2009, 02:23 PM
surfer03133 surfer03133 is offline
Dead Whales Everywhere!

Join Date: May 2009
Posts: 929
Send a message via Skype™ to surfer03133
Default

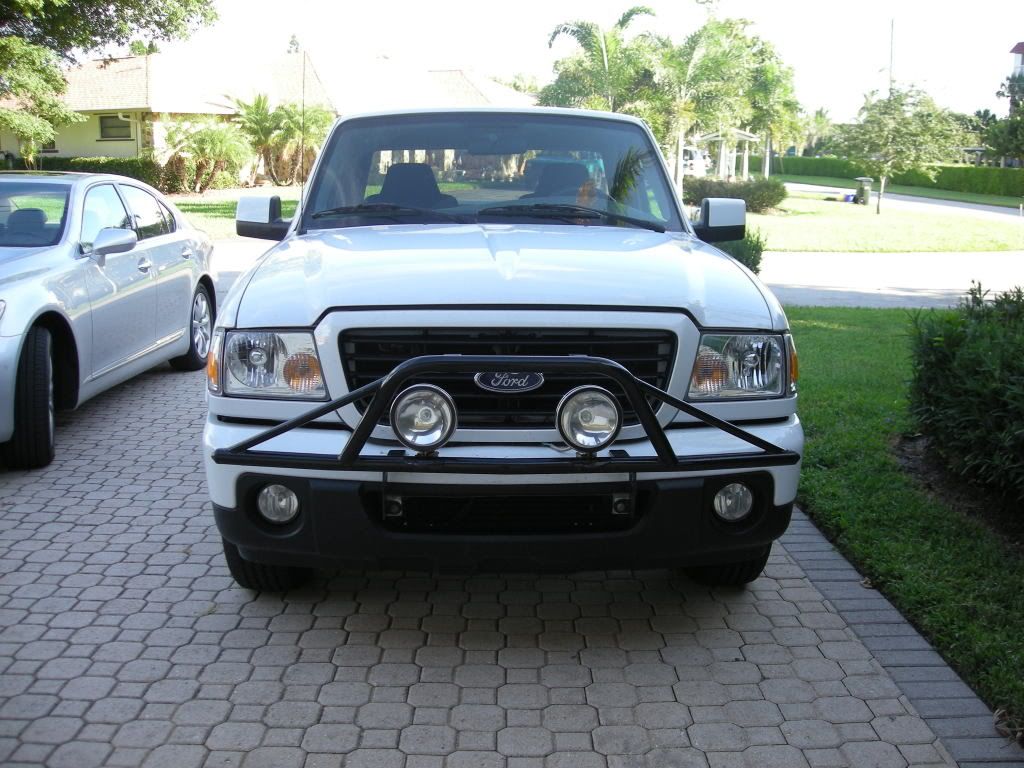

are you looking for one like this:


if so, buy the procomp lightbar for 97- trucks, make some brackets and you got a lightbar for your truck. i spent 150 when all was said and done.
__________________
08 Ranger Sport 2wd
aFe CAI, 30x9.5.x15 Grabber AT2s, U/D pulleys, flowmaster super 44

"Those who make peaceful revolution impossible will make violent revolution inevitable."
- John F. Kennedy

"Somehow the "god of the athiests" delivers more miracles than all other religion combined than..."
Reply With Quote
  #4
Old 08-20-2009, 03:49 PM
greyghost greyghost is offline
Ford Ranger Driver

Join Date: Aug 2009
Posts: 1,528
Default

i wish i had pics but i can explain the concept to you. if you look on the back side of your stock bumper at the top you will see 2 bolts in the outer area of your grille. they are on the inside of your frame horns. what i've seen done is to take a 2" peice of flat stock steel and make a crease on the top side so that you can bend it in a 90* angle then weld it to give it more strength. drill a hole so you can bolt it to the back of your bumper. then take a peice of angle iron and bolt/weld it to those peices and mount the desired lighting to that. you could use aluminum for a cleaner look of poor man's chrome.
Reply With Quote
  #5
Old 08-20-2009, 04:29 PM
RangerJustin RangerJustin is offline
~+!)@(#*$&%^

Join Date: May 2009
Posts: 3,033
Send a message via AIM to RangerJustin Send a message via Skype™ to RangerJustin
Default

^^^What he said is what I have. They are actually on sale at Underdog-Performance, The Art of Power right now. You buy those tabs and then you can hold 2 lights. After that you can get a flat bar and lay it across the tabs and added 2 more lights in the middle.
__________________
Sold:2004 XLT 4x2 Ext. Cab. 3.0 Mods: 3" spindle, AAL, shackle, 32x11.5 on 15x8s, billet grille, clear corners, flow 40 dumped, line-x, CB/PA, traction bars, lil sound system, auto up down windows
Sold:2005 XLT 4x4 Ext. Cab. 4.0 Mods: ProComp lights w/ HID swap on tabs, 32x11.5 on 15x8s, CB/PA, black out heads/corners, lil sound system, cranked t-bars, flow 40 dumped, line-x, shell, bed rug, 06+ tails, metal tail gate handle since plastic one shattered, OHC, Mustang Dome.
Reply With Quote
  #6
Old 08-20-2009, 04:30 PM
RangerJustin RangerJustin is offline
~+!)@(#*$&%^

Join Date: May 2009
Posts: 3,033
Send a message via AIM to RangerJustin Send a message via Skype™ to RangerJustin
Default

A link to the page:

Offroad Light Mounting : Underdog-Performance, The Art of Power

Light tabs (the part that mounts to the bumper bolts, on sale for $10 right now, and then above those on the link posted are the 2 options he sells to get a bar across if you want to add 2 more lights.
__________________
Sold:2004 XLT 4x2 Ext. Cab. 3.0 Mods: 3" spindle, AAL, shackle, 32x11.5 on 15x8s, billet grille, clear corners, flow 40 dumped, line-x, CB/PA, traction bars, lil sound system, auto up down windows
Sold:2005 XLT 4x4 Ext. Cab. 4.0 Mods: ProComp lights w/ HID swap on tabs, 32x11.5 on 15x8s, CB/PA, black out heads/corners, lil sound system, cranked t-bars, flow 40 dumped, line-x, shell, bed rug, 06+ tails, metal tail gate handle since plastic one shattered, OHC, Mustang Dome.
Reply With Quote
  #7
Old 08-20-2009, 04:32 PM
surfer03133 surfer03133 is offline
Dead Whales Everywhere!

Join Date: May 2009
Posts: 929
Send a message via Skype™ to surfer03133
Default

your lucky too, they got rid of those bolts in like 06 or something, i only have two little rubber plugs.
__________________
08 Ranger Sport 2wd
aFe CAI, 30x9.5.x15 Grabber AT2s, U/D pulleys, flowmaster super 44

"Those who make peaceful revolution impossible will make violent revolution inevitable."
- John F. Kennedy

"Somehow the "god of the athiests" delivers more miracles than all other religion combined than..."
Reply With Quote
  #8
Old 08-20-2009, 04:42 PM
RangerJustin RangerJustin is offline
~+!)@(#*$&%^

Join Date: May 2009
Posts: 3,033
Send a message via AIM to RangerJustin Send a message via Skype™ to RangerJustin
Default

Yea I know...just made it. I have seen them made to work on 06+ though.
__________________
Sold:2004 XLT 4x2 Ext. Cab. 3.0 Mods: 3" spindle, AAL, shackle, 32x11.5 on 15x8s, billet grille, clear corners, flow 40 dumped, line-x, CB/PA, traction bars, lil sound system, auto up down windows
Sold:2005 XLT 4x4 Ext. Cab. 4.0 Mods: ProComp lights w/ HID swap on tabs, 32x11.5 on 15x8s, CB/PA, black out heads/corners, lil sound system, cranked t-bars, flow 40 dumped, line-x, shell, bed rug, 06+ tails, metal tail gate handle since plastic one shattered, OHC, Mustang Dome.
Reply With Quote
  #9
Old 08-20-2009, 04:50 PM
greyghost greyghost is offline
Ford Ranger Driver

Join Date: Aug 2009
Posts: 1,528
Default

gee thanks guys i didn't realize they were that cheap or i wouldn't have sugested making your own. i'm just glad were all on the same page here.
Reply With Quote
  #10
Old 08-20-2009, 05:07 PM
RangerJustin RangerJustin is offline
~+!)@(#*$&%^

Join Date: May 2009
Posts: 3,033
Send a message via AIM to RangerJustin Send a message via Skype™ to RangerJustin
Default

They are usually 20, went on sale a couple weeks back
__________________
Sold:2004 XLT 4x2 Ext. Cab. 3.0 Mods: 3" spindle, AAL, shackle, 32x11.5 on 15x8s, billet grille, clear corners, flow 40 dumped, line-x, CB/PA, traction bars, lil sound system, auto up down windows
Sold:2005 XLT 4x4 Ext. Cab. 4.0 Mods: ProComp lights w/ HID swap on tabs, 32x11.5 on 15x8s, CB/PA, black out heads/corners, lil sound system, cranked t-bars, flow 40 dumped, line-x, shell, bed rug, 06+ tails, metal tail gate handle since plastic one shattered, OHC, Mustang Dome.
Reply With Quote
  #11
Old 08-20-2009, 05:16 PM
surfer03133 surfer03133 is offline
Dead Whales Everywhere!

Join Date: May 2009
Posts: 929
Send a message via Skype™ to surfer03133
Default

just curious, Justin, the one you saw made to work on an 06+, were the rubber caps just removed and replaced with a bolt? or was it more involved?
__________________
08 Ranger Sport 2wd
aFe CAI, 30x9.5.x15 Grabber AT2s, U/D pulleys, flowmaster super 44

"Those who make peaceful revolution impossible will make violent revolution inevitable."
- John F. Kennedy

"Somehow the "god of the athiests" delivers more miracles than all other religion combined than..."
Reply With Quote
  #12
Old 08-20-2009, 06:34 PM
RangerJustin RangerJustin is offline
~+!)@(#*$&%^

Join Date: May 2009
Posts: 3,033
Send a message via AIM to RangerJustin Send a message via Skype™ to RangerJustin
Default

hmm...it was over a year ago...i will try to find it later on.
__________________
Sold:2004 XLT 4x2 Ext. Cab. 3.0 Mods: 3" spindle, AAL, shackle, 32x11.5 on 15x8s, billet grille, clear corners, flow 40 dumped, line-x, CB/PA, traction bars, lil sound system, auto up down windows
Sold:2005 XLT 4x4 Ext. Cab. 4.0 Mods: ProComp lights w/ HID swap on tabs, 32x11.5 on 15x8s, CB/PA, black out heads/corners, lil sound system, cranked t-bars, flow 40 dumped, line-x, shell, bed rug, 06+ tails, metal tail gate handle since plastic one shattered, OHC, Mustang Dome.
Reply With Quote
