Default DDM Hid's Mounting Locations Help

Hi guys I have always ordered ddm hid for years, this is the first with the ranger, they are already on, just need to mount/tie them off and just basically clean them up a bit so that they are neat, any tips, anyone have pics or would like to take pics and show off their skills, thanks so much .
__________________
http://s694.photobucket.com/user/dix...dding.jpg.html

They will remember me always
Reply With Quote
  #2
Old 01-13-2011, 10:27 PM
ben10 ben10 is offline
slut life

Join Date: Oct 2010
Posts: 3,014
Default Re: DDM Hid's Mounting Locations Help

i am with you, i stuffed my ballasts inbetween the battery and fender on one side and under the airbox on the other side, it was a pain!
__________________
99 extended cab, 4.0, auto, 33s, 4x4 lifted with some stuff done

98 2wd 2.5, 5 speed, dropped with some stuff done
Reply With Quote
  #3
Old 01-13-2011, 10:41 PM
Casper Casper is online now
Adam's > Everything else

Join Date: Dec 2009
Posts: 1,636
Default Re: DDM Hid's Mounting Locations Help

Here's where I mounted mine

Drivers side

Passenger side

And the relay for the Hi/lo kit on the core support
__________________
98 Ranger some stuff done

PNW Crew
Reply With Quote
  #4
Old 01-13-2011, 10:46 PM
ben10 ben10 is offline
slut life

Join Date: Oct 2010
Posts: 3,014
Default Re: DDM Hid's Mounting Locations Help

damn your ballasts are tiny! mine are waaaaaay bigger
__________________
99 extended cab, 4.0, auto, 33s, 4x4 lifted with some stuff done

98 2wd 2.5, 5 speed, dropped with some stuff done
Reply With Quote
  #5
Old 01-13-2011, 10:53 PM
Casper Casper is online now
Adam's > Everything else

Join Date: Dec 2009
Posts: 1,636
Default Re: DDM Hid's Mounting Locations Help

lol Slim Ballast FTW!
__________________
98 Ranger some stuff done

PNW Crew
Reply With Quote
  #6
Old 01-13-2011, 11:00 PM
ben10 ben10 is offline
slut life

Join Date: Oct 2010
Posts: 3,014
Default Re: DDM Hid's Mounting Locations Help

shoulda spent the extra dough... since this is a HID thing, does it bug your radio out when you turn your headlights on?

if im listening to my ipod on my kenwood deck and turn the lights on it stops the music and i have to unplug then re-plug in the ipod... but then it works fine, and i can run with my headlights and amp and tunes blasting even at an idle for a while with no problems...
__________________
99 extended cab, 4.0, auto, 33s, 4x4 lifted with some stuff done

98 2wd 2.5, 5 speed, dropped with some stuff done
Reply With Quote
  #7
Old 01-13-2011, 11:20 PM
4evermodding 4evermodding is offline
Modding To Continue >>>>

Join Date: May 2009
Posts: 1,114
Default Re: DDM Hid's Mounting Locations Help

[QUOTE=Casper;295415]Here's where I mounted mine

Thank you sir for the pics, I really really appreciate your post, those are perfect hiding spots.
__________________
http://s694.photobucket.com/user/dix...dding.jpg.html

They will remember me always
Reply With Quote
  #8
Old 01-30-2011, 08:46 PM
leviranger leviranger is offline
Ford Tough

Join Date: Jan 2011
Posts: 283
Default Re: DDM Hid's Mounting Locations Help

Hey guys I have a problem with my hids I installed the other night. The low beam is halogen and high beam is hid, it suppose to be the other way around, which the low beam is suppose to be hid and high beam halogen, thanks for any help
__________________
2000 3.0 4by4 ext.cab
Reply With Quote
  #9
Old 01-31-2011, 03:26 PM
leviranger leviranger is offline
Ford Tough

Join Date: Jan 2011
Posts: 283
Default Re: DDM Hid's Mounting Locations Help

I mounted my ballasts behind the grill
__________________
2000 3.0 4by4 ext.cab
Reply With Quote
  #10
Old 01-31-2011, 03:58 PM
Tom Tom is offline
Ranger Enthusiast

Join Date: Nov 2008
Posts: 6,829
Default Re: DDM Hid's Mounting Locations Help

Quote:
Originally Posted by leviranger View Post
Hey guys I have a problem with my hids I installed the other night. The low beam is halogen and high beam is hid, it suppose to be the other way around, which the low beam is suppose to be hid and high beam halogen, thanks for any help
You have your kit wired backwards, switch the hi/low wires.
__________________
2006 Ford Ranger Sport 4.0 2WD on 32x11.50R15s
-3" Doetsch Spindle Lift


Using the forum:
How to Post on the Forum
Creating a signature (do this before asking any questions)
Upload an Avatar (image of your Ranger)
How to Post Pictures on the Forum
Switch the site layout: Light Theme or Dark Theme

Things to do:
Participate in Truck of the Month
Participate in the Ranger Photo Contest
Participate in the Non-Automotive Photo Contest
Become a Site Contributor
Shop at the FordRangerForum.com Store
Reply With Quote
  #11
Old 01-31-2011, 07:01 PM
S13minus1 S13minus1 is offline
Sideways? Sideways.

Join Date: Jun 2010
Posts: 1,592
Send a message via AIM to S13minus1
Default Re: DDM Hid's Mounting Locations Help

i sent this PM to jordan (drift something? haha) when he had a couple questions, I'll post it here too.
Quote:
Originally Posted by S13minus1
bam! here you go.
my (dirty) engine bay.

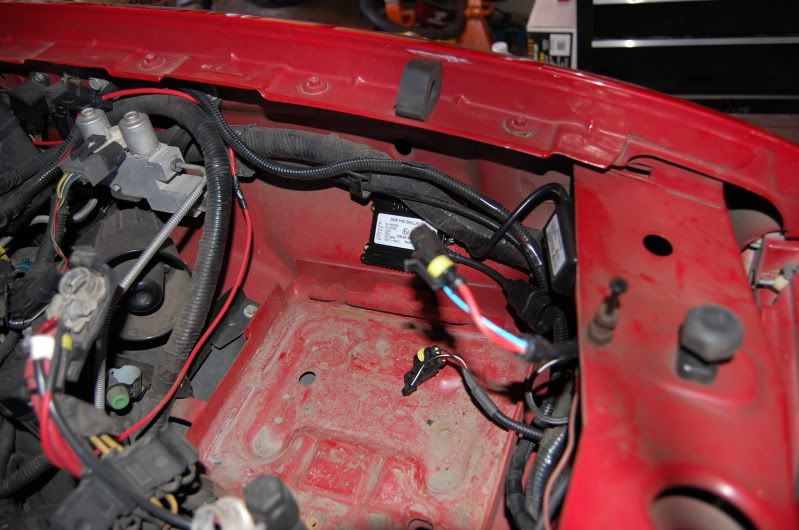

this is where i mounted the relay. the wiring runs from the battery positive, down a little and behind the battery, ziptied to a brakeline near the abs unit, back between the fender and the battery. its then the relay is bolted to a factory location in front of the battery that holds up the oe wiring harness.

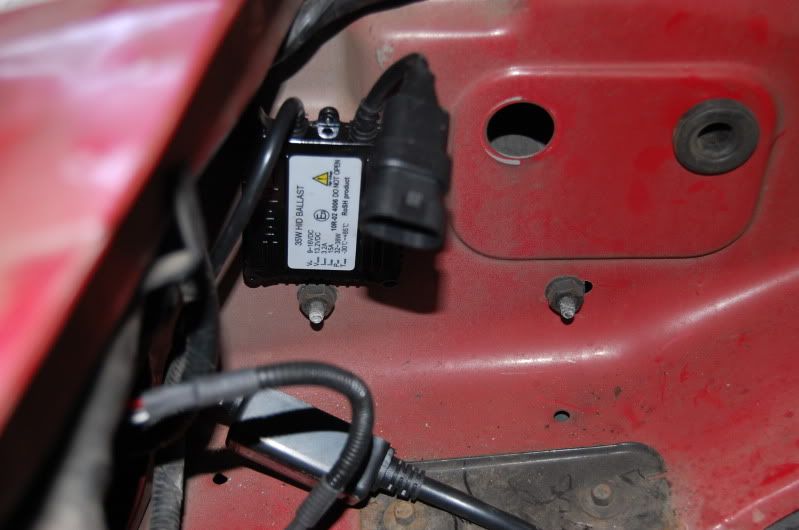

this shows the drivers side setup a little better. the ballast is double-side taped behind the headlight hole thing. i really have to loom everything up better asap :x the ground point for this ballast is the factory body ground, right off the negative battery cable. then the harness runs up in front of the radiator, ziptied to the factory harness...

...and back thru the other side. this is the best picture of the passenger side i could get, damn airbox. but you can see how the ballast is mounted right in front of the airbox. this ground point is the plate that bolts to the inner fender to support the airbox. i had to sand it down a bit for a good connection.

i hope this helps! all i had to do was to unbolt the top radiator mounts, and the airbox support. soon i hope to reloom everything even cleaner.
anything else, feel free to ask!
