Default 2006 ranger 4.0 tranny fluid change

What is the best way to change the tranny fluid in my 06 4x4 4.0. And should i change the filter to or not worry about it there is 54k on the truck. thanks
__________________
2006 XLT 4.0 SOHC.
air box mod
Reply With Quote
  #2
Old 07-03-2011, 09:47 PM
Rg1Baja Rg1Baja is offline
DirtFreeks Mtrspts #7299

Join Date: May 2011
Posts: 180
Default Re: 2006 ranger 4.0 tranny fluid change

Loosen all the bolts in the pan. Dont take them out. Then loosen just one side/corner and let it drain otherwise its gonna look like someone got murdered under the truck. Make sure you clean the pan out when its off. Change the filter for sure. They are cheap and you get a new tranny pan seal with them.
__________________
DirtFreeks Motorsports
Reply With Quote
  #3
Old 07-04-2011, 11:50 AM
north44 north44 is offline
Ford Truck Driver

Join Date: Jan 2010
Posts: 77
Default Re: 2006 ranger 4.0 tranny fluid change

If you're going to drop the pan, may as well change the filter while you're under there.

If you've put in a drain plug in the pan, might only have to drop the pan and change the filter after every 2 or 3 flushes/fluid changes.

At least that's how it seems to me.
__________________
2003 Supercab Flareside
4 liter V6
4x4 FX4 Level I
5 speed Auto
4.10 LS Rear
Reply With Quote
  #4
Old 07-05-2011, 05:51 AM
ssptank ssptank is offline
06Ranger4x4

Join Date: Dec 2009
Posts: 26
Default Re: 2006 ranger 4.0 tranny fluid change

what is the best way to fill it back up. and how much fluid will it take?
__________________
2006 XLT 4.0 SOHC.
air box mod
Reply With Quote
  #5
Old 07-05-2011, 07:12 AM
STL STL is offline
...............


Join Date: May 2009
Posts: 23,398
Default Re: 2006 ranger 4.0 tranny fluid change

Quote:
Originally Posted by ssptank View Post
what is the best way to fill it back up. and how much fluid will it take?
Gotta fill it back up through the tube in the engine compartment.

Put what ever the amount of fluid the manual says. Then start it up let the truck warm up and check it.
__________________
2005 Edge

Reply With Quote
  #6
Old 07-06-2011, 01:04 PM
north44 north44 is offline
Ford Truck Driver

Join Date: Jan 2010
Posts: 77
Default Re: 2006 ranger 4.0 tranny fluid change

Quote:
Originally Posted by ssptank View Post
what is the best way to fill it back up. and how much fluid will it take?
As stated, fill up through the dipstick tube.

When I drop the pan and change the filter, it takes about 4 - 4 1/2 liters of ATF to refill to spec - that's a 5r55e tranny.

------

For my tranny, capacity is listed as 9.8 liters = 10.3 quarts
__________________
2003 Supercab Flareside
4 liter V6
4x4 FX4 Level I
5 speed Auto
4.10 LS Rear

Last edited by north44; 07-06-2011 at 01:21 PM. Reason: Added information on capacity
Reply With Quote
  #7
Old 07-17-2011, 07:37 AM
ssptank ssptank is offline
06Ranger4x4

Join Date: Dec 2009
Posts: 26
Default Re: 2006 ranger 4.0 tranny fluid change

how easy is the trany filter to change?
__________________
2006 XLT 4.0 SOHC.
air box mod
Reply With Quote
  #8
Old 07-17-2011, 05:36 PM
north44 north44 is offline
Ford Truck Driver

Join Date: Jan 2010
Posts: 77
Default Re: 2006 ranger 4.0 tranny fluid change

Not too bad at all if you have a hoist and can easily get to all the bolts . . .

Doable with the truck on jacks, but potentially messy - the ATF more than fills the pan, so when you drop the pan, well, just be ready for potential spills . . .

Clean out the old pan (I use "brake clean", "electrical parts cleaner" or something similar - you DON"T want anything that will leave a film which usually precludes any type of petroleum based cleaner), and the mating surfaces with the tranny; there will be some "gray stuff" in the bottom of the pan - clean that stuff out - it's fine metal particles from the tranny, pretty normal, but it should be "fine" - no "chunks" of anything please, that would be trouble . . .

If it's the first time the ATF and filter has been changed, there may be a small rubber plug in the bottom of the pan - it's a plug from the manufacturing process that keeps the tranny sealed until the ATF dipstick was emplaced . . .

Swapping the filter is straightforward - just don't lose the new o-ring for where the filter plugs in, sometimes the new bolt with the tranny kit needs a spacer (which usually comes with the kit, even if you don't need it - pretty easy to figure out) . . .

Lining up the gasket with the bolt holes is probably the hardest part of putting the pan back on - some mechanics will lay down a thin film of RTV silicone to hold the gasket in place - gotta wait 'til it's a little bit tacky and holds the gasket in place before you start threading the bolts (there are a whole bunch of those suckers, don't recall exactly how many, 18?, 20?, anyway, you don't want to misplace one) . . .

Get them all in and finger tighten . . .

Then it's just a matter of tightening them all up in an overall even pattern - think similar to tightening up heads - I usually torque them to about 100 in/lbs (spec calls for 96-120 in/lbs) . . .

Then just re-fill with required type and amount of ATF (through the dipstick - mine takes about 4 1/2 liters if I just drop the pan and change the filter) - I add about 3 to 4 liters, then check the dipstick, engine running, and gradually add the last 1/2 liter , so as not to overfill.

And that's about it; I've covered everthing I can think of (- if I've forgotten something, someone please chime in) - not really difficult - most difficult part is finding the time and determination to do it.

So that's about it, except for the "disclaimer" - so: "You follow these instructions at your own discretion and risk, and I, the writer, take no responsibility for any attempt to follow this outline."

If you take it to a shop it's about $100 CDN the last time I checked, but that was years ago - probably a lot more expensive these days.

Good luck with it if you decide to change it yourself.
__________________
2003 Supercab Flareside
4 liter V6
4x4 FX4 Level I
5 speed Auto
4.10 LS Rear
Reply With Quote
  #9
Old 07-18-2011, 12:54 PM
ssptank ssptank is offline
06Ranger4x4

Join Date: Dec 2009
Posts: 26
Default Re: 2006 ranger 4.0 tranny fluid change

thanks for all your help i will be doing it this weeked we shall see how it goes will keep you up to date if i have any issues..do you have to torqe them or can you just hand tighten them i dont have a torqe wrench
__________________
2006 XLT 4.0 SOHC.
air box mod
Reply With Quote
  #10
Old 07-18-2011, 09:53 PM
north44 north44 is offline
Ford Truck Driver

Join Date: Jan 2010
Posts: 77
Default Re: 2006 ranger 4.0 tranny fluid change

A lot of experienced mechanics don't torque the bolts - they develop a "feel" for the right amount of pressure - so I suppose it isn't absolutely necessary.

Still, a torque wrench is the only way that you will obtain an objective, accurate measurement.

Torquing to the right specs ensures that you aren't over- or under- tightening - pretty critical if you want to do it right.

Not using a torque wrench means you are taking a chance. If you get in the correct range, you won't have any leaks - if you don't, you may develop leaks over time, either through over- or under-tightening.

Your truck, your choice.
__________________
2003 Supercab Flareside
4 liter V6
4x4 FX4 Level I
5 speed Auto
4.10 LS Rear
Reply With Quote
  #11
Old 07-19-2011, 12:09 AM
wintermute wintermute is offline
'03 Edge 4x4

Join Date: Sep 2010
Posts: 242
Default Re: 2006 ranger 4.0 tranny fluid change

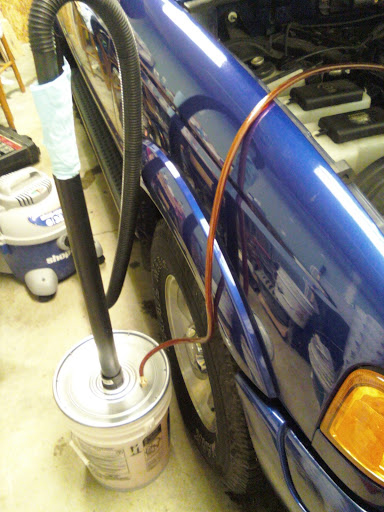

I found that the cleanest way to drop the pan is to use a fluid extractor through the dipstick tube first–this will not drain the pan however!

Then with the pan supported by a floor jack, remove the bolts and slowly lower the pan less than an inch. At this point work around the edge of the pan and free the gasket completely. then lower the pan a little farther. it will impact either the transmission crossmember or the flange of the forward catalytic converter. From here you can use the fluid extractor to drain the pan.

I actually did two fluid changes about 500 miles apart, changing the filter on the second pan drop. I did this because I don't have the equipment to perform a full fluid flush through the coolant lines, at best I was able to change ~1/3 of the total system volume at a time.
__________________
2003 Edge 4x4 Sonic Blue 4.0 SOHC, Auto, 4.10 LSD, 4-door Supercab

Last edited by wintermute; 07-19-2011 at 12:12 AM.
Reply With Quote
  #12
Old 08-02-2011, 02:46 PM
JGiddy JGiddy is offline
-

Join Date: Jul 2010
Posts: 2,682
Default Re: 2006 ranger 4.0 tranny fluid change

What about for manual trannys without a dipstick, what is the best way to fill them back up?
Reply With Quote
  #13
Old 08-02-2011, 06:49 PM
S13minus1 S13minus1 is offline
Sideways? Sideways.

Join Date: Jun 2010
Posts: 1,592
Send a message via AIM to S13minus1
Default Re: 2006 ranger 4.0 tranny fluid change

manuals typically have a fill plug on the side, that you fill to the bottom of. using a pump or squeezing the tits off the gear oil bottle.
__________________
-Alex
'10 Ranger XL 2.3L Manual
Mods: Stereo, Tint, Weatherguard rain shields, Intake silencer removal, LED brake, turn signal, reverse, license plate, and dome lights, DDM HID's (currently removed), lowered, 17" wheels with spacers, Explorer autodim mirror with Autolamps, Magnaflow exhaust, Buggman LED 3rd Brake Light...
Quote:
Originally Posted by ColinS View Post
awe come on alex be a man!
