Default Suspension (Somethings broke)

Can anyone tell me what exactly this is and if I can fix it myself and should I be continuing it drive it like this haha







----------

sorry i just realized I posted this in 4.0 tech instead of suspension. PLEASE DELETE
__________________
1999 Ranger XLT V6 4.0 Orange
EXTERIOR:
- Black signals & Corners (not tinted) | Clear Headlights | silverstar Ultra Bulbs | Black Taillight covers | Painted Black Grille/Valance | Painted black top step on rear bumper | Painted black exhuast & aftermarket Tip | Painted black emblems | Black toolbox | Decepticon Ford badges | 20% tint

INTERIOR:
- JVC Head unit | 4 Kicker door speakers | LED white floor lights |
Reply With Quote
  #2
Old 06-26-2011, 05:39 PM
ColinS ColinS is offline
slingin' mud to the sky!

Join Date: Feb 2011
Posts: 1,252
Default Re: Suspension (Somethings broke)

diont matter where you posted its still suspension.


its the sway bar end link.

----------

just get bushings for it from summit. they are 8 bucks a pack.

the metal is not broken just the rubber bushing split
__________________
Colin S. AGE: 18
1994 Ford Ranger XLT 4x4 reg. cab 4.0l 5spd, 2" SL , Summit Nomads 15x8, 30x9.5x15 Trail Digger M/T's, cab lights, spray in bed liner, custom tube bumper,

1994 Ford Ranger XLT 2.3l 5spd ext. cab. the loaner truck

1987 Camaro z28 383 to much to list

https://www.facebook.com/colinshriver

http://www.fordrangerforum.com/proje...anger-4x4.html
Reply With Quote
  #3
Old 06-26-2011, 06:32 PM
FX4OR FX4OR is offline
Ford Tough

Join Date: Dec 2010
Posts: 417
Default Re: Suspension (Somethings broke)

yeah, end link. i bet it makes a racket over bumps looking like that!
__________________
2002 Ranger FX4
4.0L SOHC, 5R55E Auto, 4.10 8.8 Torsen, 31x10.5/15 BFG ATs
Reply With Quote
  #4
Old 06-26-2011, 07:17 PM
north44 north44 is offline
Ford Truck Driver

Join Date: Jan 2010
Posts: 77
Default Re: Suspension (Somethings broke)

Not only noise, but the front end will sway more than usual during turns - who would have guessed that would happen when the "sway bar link" breaks or wears out the bushings?

While it doesn't pose any immediate danger - you can drive it - get it fixed soon.

Getting the old one off with a torch is easiest.

The OEM link is a piece of plastic with threaded inserts that a nut fits onto, and on my truck, the left link snapped on the plastic part.

Good luck on your repair.

----------

BTW, you may want to upgrade to an aftermarket all metal part when you replace.

The link isn't all that expensive. I think mine was about $20.00 CDN and that was a no-name part.

Moog parts, FWIW, have a lifetime warranty, so if you're keeping the truck for a long time, that's the way to go.
__________________
2003 Supercab Flareside
4 liter V6
4x4 FX4 Level I
5 speed Auto
4.10 LS Rear
Reply With Quote
  #5
Old 06-26-2011, 08:49 PM
Rg1Baja Rg1Baja is offline
DirtFreeks Mtrspts #7299

Join Date: May 2011
Posts: 180
Default Re: Suspension (Somethings broke)

Removal

1. Raise the vehicle on a hoist.
2. Remove the wheel and tire assembly

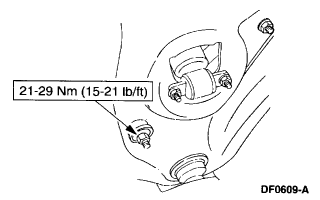

3. Remove the front stabilizer bar link nuts from the front suspension lower arms.

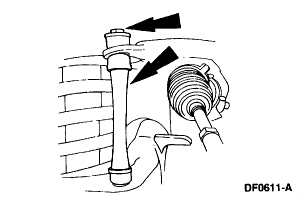

4. Remove the front stabilizer bar link bolts and the front stabilizer bar links.

5. Remove the front stabilizer bar.

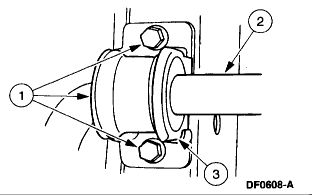

1. Remove the four bolts and two brackets.
2. Remove the front stabilizer bar.
3. Remove the stabilizer bar insulator.

Installation

Note: In the event the self-tapping bolts cannot be installed in the frame, there is a kit available with flag nuts; consult your parts department for further information.


Follow the removal procedure in reverse order.
__________________
DirtFreeks Motorsports
Reply With Quote
  #6
Old 06-27-2011, 07:03 AM
Decepticon Decepticon is offline
Black & Orange

Join Date: Jan 2011
Posts: 441
Default Re: Suspension (Somethings broke)

Quote:
Originally Posted by Rg1Baja View Post
Removal

1. Raise the vehicle on a hoist.
2. Remove the wheel and tire assembly

3. Remove the front stabilizer bar link nuts from the front suspension lower arms.

4. Remove the front stabilizer bar link bolts and the front stabilizer bar links.

5. Remove the front stabilizer bar.

1. Remove the four bolts and two brackets.
2. Remove the front stabilizer bar.
3. Remove the stabilizer bar insulator.

Installation

Note: In the event the self-tapping bolts cannot be installed in the frame, there is a kit available with flag nuts; consult your parts department for further information.


Follow the removal procedure in reverse order.
wow. thanks guys, this is perfect. thanks for all the help
__________________
1999 Ranger XLT V6 4.0 Orange
EXTERIOR:
- Black signals & Corners (not tinted) | Clear Headlights | silverstar Ultra Bulbs | Black Taillight covers | Painted Black Grille/Valance | Painted black top step on rear bumper | Painted black exhuast & aftermarket Tip | Painted black emblems | Black toolbox | Decepticon Ford badges | 20% tint

INTERIOR:
- JVC Head unit | 4 Kicker door speakers | LED white floor lights |
Reply With Quote
  #7
Old 06-27-2011, 07:18 AM
Clinton Clinton is offline
Banned

Join Date: Mar 2010
Posts: 14,049
Default Re: Suspension (Somethings broke)

Thats just a sway bar link bushing. You can do it yourself no problem man. Take the bolts off the top, then unscrew it from under the lower control arm. Swap in the new bushing then put it back in reverse order. Easier than it sounds
Reply With Quote
  #8
Old 06-27-2011, 02:47 PM
Rg1Baja Rg1Baja is offline
DirtFreeks Mtrspts #7299

Join Date: May 2011
Posts: 180
Default Re: Suspension (Somethings broke)

Yeah the pics I posted are taking the sway bar out. If your just doing the ends its a lot easier and faster.
__________________
DirtFreeks Motorsports
Reply With Quote
  #9
Old 06-27-2011, 07:58 PM
Redneckstone Redneckstone is offline
Welcome to FRF, & enjoy!


Join Date: Oct 2009
Posts: 5,110
Default Re: Suspension (Somethings broke)

ya dont take off the sway bar its not needed LOL
__________________
2000 Ford Ranger XLT 4x4 Offroad, 4.0L ext cab, Converted to Manual M5OD-R1HD.
_____________
33x13.50 Toyo M/T, 15x10, Body Lift, Rebuilt OHV, JBA headers, Hurst shifter, Warn VR10000-s, Class 1 bars, Belltech Shackles, Mustang GT rear disc, Level II hooks, Modded rear hitch, Custom front hitch, Level II Blue seats and black console, Explorer IRS rear cover, Extang fulltilt, Leer Cap Yakima Roof Rack, Cobra 29 with firestik stake mount, Scangauge II
Few mods
Reply With Quote
  #10
Old 06-28-2011, 09:01 AM
Decepticon Decepticon is offline
Black & Orange

Join Date: Jan 2011
Posts: 441
Default Re: Suspension (Somethings broke)

I got 2 new end links and bushings last night and I'm installing today. I'll post pics tonight
__________________
1999 Ranger XLT V6 4.0 Orange
EXTERIOR:
- Black signals & Corners (not tinted) | Clear Headlights | silverstar Ultra Bulbs | Black Taillight covers | Painted Black Grille/Valance | Painted black top step on rear bumper | Painted black exhuast & aftermarket Tip | Painted black emblems | Black toolbox | Decepticon Ford badges | 20% tint

INTERIOR:
- JVC Head unit | 4 Kicker door speakers | LED white floor lights |
Reply With Quote
  #11
Old 06-30-2011, 01:55 PM
Decepticon Decepticon is offline
Black & Orange

Join Date: Jan 2011
Posts: 441
Default Re: Suspension (Somethings broke)

I put installed the new ones yesterday. Pics in new thread. >>>>> Bored. Washed. Pics.
__________________
1999 Ranger XLT V6 4.0 Orange
EXTERIOR:
- Black signals & Corners (not tinted) | Clear Headlights | silverstar Ultra Bulbs | Black Taillight covers | Painted Black Grille/Valance | Painted black top step on rear bumper | Painted black exhuast & aftermarket Tip | Painted black emblems | Black toolbox | Decepticon Ford badges | 20% tint

INTERIOR:
- JVC Head unit | 4 Kicker door speakers | LED white floor lights |
Reply With Quote
  #12
Old 07-18-2011, 01:33 PM
JGiddy JGiddy is offline
-

Join Date: Jul 2010
Posts: 2,682
Default Re: Suspension (Somethings broke)

Quote:
Originally Posted by Decepticon View Post
I put installed the new ones yesterday. Pics in new thread. >>>>> Bored. Washed. Pics.
bump...

Do you need an alignment after doing this??? I could really use some of these but I just got an alignment, d'oh!

Last edited by JGiddy; 07-18-2011 at 01:40 PM.
Reply With Quote
  #13
Old 07-18-2011, 01:36 PM
ColinS ColinS is offline
slingin' mud to the sky!

Join Date: Feb 2011
Posts: 1,252
Default Re: Suspension (Somethings broke)

no you dont need an alignment.

i believe he got his from autozone
__________________
Colin S. AGE: 18
1994 Ford Ranger XLT 4x4 reg. cab 4.0l 5spd, 2" SL , Summit Nomads 15x8, 30x9.5x15 Trail Digger M/T's, cab lights, spray in bed liner, custom tube bumper,

1994 Ford Ranger XLT 2.3l 5spd ext. cab. the loaner truck

1987 Camaro z28 383 to much to list

https://www.facebook.com/colinshriver

http://www.fordrangerforum.com/proje...anger-4x4.html
Reply With Quote
  #14
Old 07-18-2011, 01:42 PM
JGiddy JGiddy is offline
-

Join Date: Jul 2010
Posts: 2,682
Default Re: Suspension (Somethings broke)

sweet thank you!
Reply With Quote
  #15
Old 07-18-2011, 01:47 PM
ColinS ColinS is offline
slingin' mud to the sky!

Join Date: Feb 2011
Posts: 1,252
Default Re: Suspension (Somethings broke)

no prob
__________________
Colin S. AGE: 18
1994 Ford Ranger XLT 4x4 reg. cab 4.0l 5spd, 2" SL , Summit Nomads 15x8, 30x9.5x15 Trail Digger M/T's, cab lights, spray in bed liner, custom tube bumper,

1994 Ford Ranger XLT 2.3l 5spd ext. cab. the loaner truck

1987 Camaro z28 383 to much to list

https://www.facebook.com/colinshriver

http://www.fordrangerforum.com/proje...anger-4x4.html
