  #16
Old 04-30-2011, 09:24 AM
ben10 ben10 is offline
slut life

Join Date: Oct 2010
Posts: 3,014
Default Re: My Serpentine belt came off?

its not if they spin free its if one some how broke or something, but 99% sure its just that your belt tensioner wore out, not the pulley on it, but the spring loaded part of it, it wasnt able to keep the belt tight probably... go to vatozone and get a new tensioner
__________________
99 extended cab, 4.0, auto, 33s, 4x4 lifted with some stuff done

98 2wd 2.5, 5 speed, dropped with some stuff done
Reply With Quote
  #17
Old 04-30-2011, 09:28 AM
mossyoak03 mossyoak03 is offline
hillbilly

Join Date: Sep 2009
Posts: 657
Send a message via AIM to mossyoak03
Default Re: My Serpentine belt came off?

Your a/c will spin freely bc the clutch isn't engaged
__________________
Mud holes are like a pretty woman with an std, you want to hit but are scared of the consequences!

4wd is like a condom. i'd rather have it and not need it rather tan needing it and not having it!
Reply With Quote
  #18
Old 04-30-2011, 09:41 AM
zatticus zatticus is offline
Ford Rangers

Join Date: Feb 2010
Posts: 221
Default Re: My Serpentine belt came off?

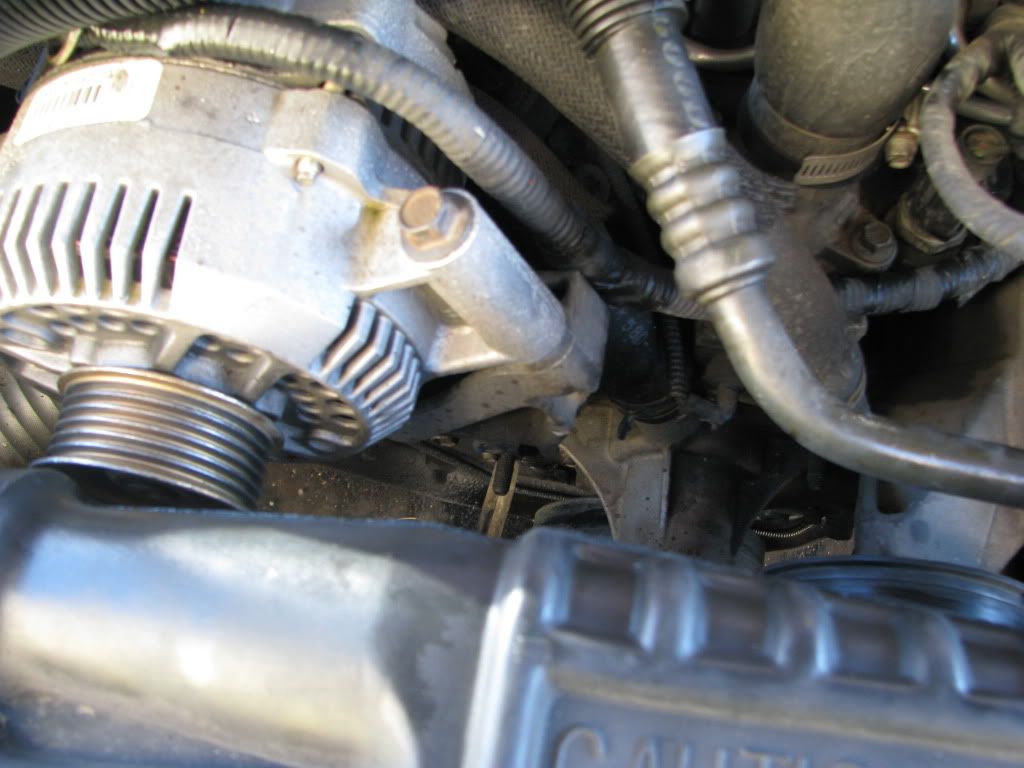

Took pictures

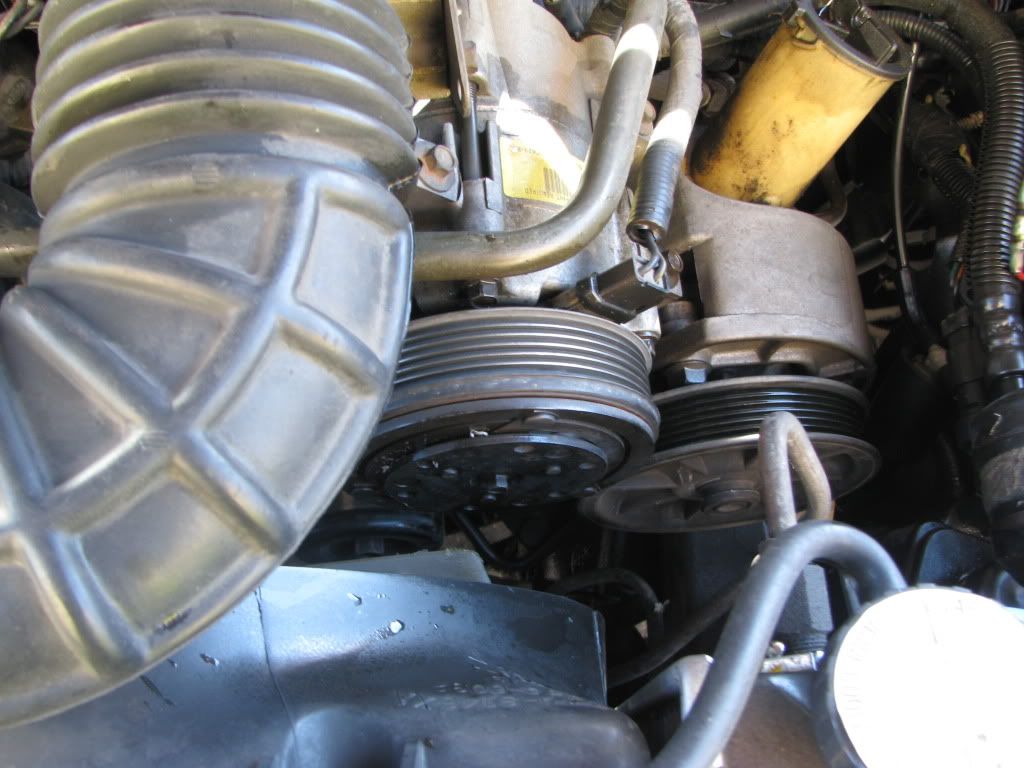

That pulley felt loose to me, thats the a/c one?


The belt was tangled up down there when I found it.

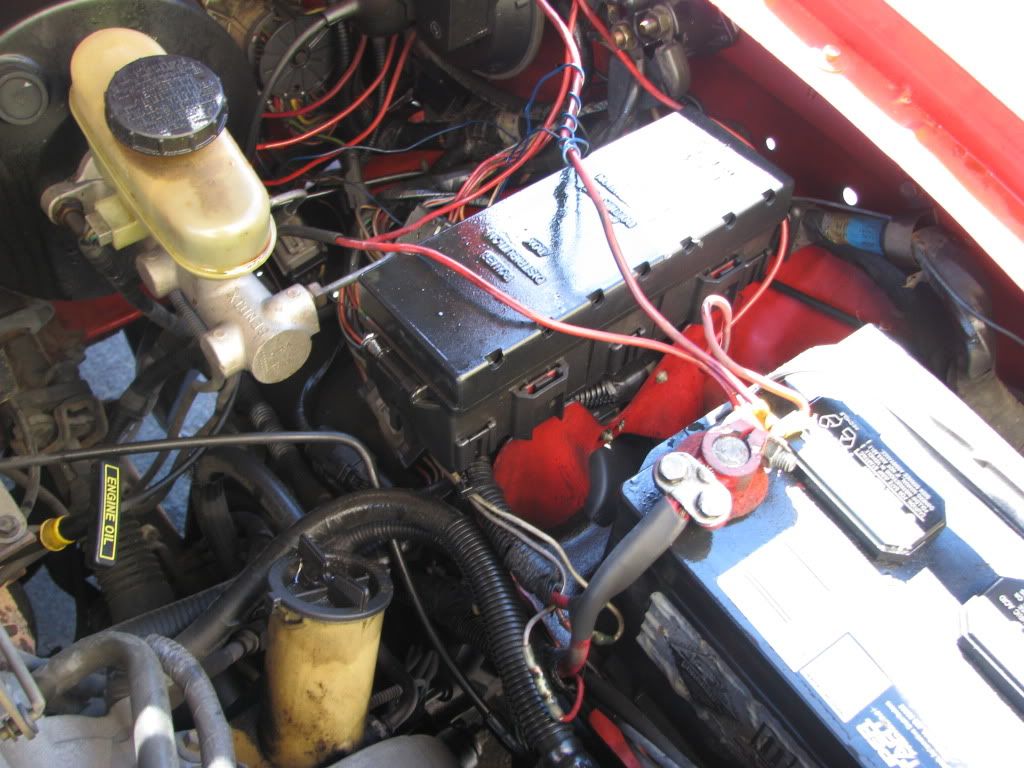

Thats what I meant by Oil being everywhere. It all looks like that, more of a light coating of Oil. Over everything.

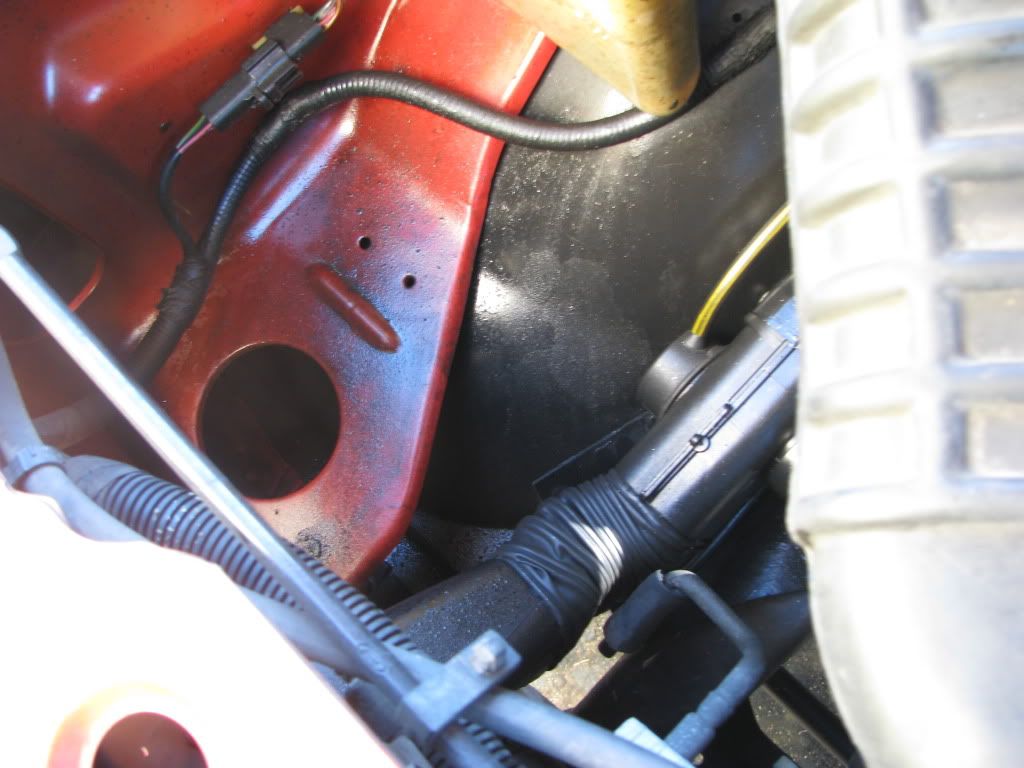

Is this what was meant by the power steering fluid everywhere, its on the battery too.
Power steering was full though, and brown. :S

----------

How do I find out for sure? Trying to save as much money as possible.
And thanks for letting me know the A/C is supposed to spin freely.
__________________
1994 Ford Ranger Splash
3.0L Automatic. Not much but she's mine.

I dream of a better tomorrow, where chickens can cross the road and not be questioned about their motives.
Reply With Quote
  #19
Old 04-30-2011, 09:44 AM
ben10 ben10 is offline
slut life

Join Date: Oct 2010
Posts: 3,014
Default Re: My Serpentine belt came off?

pull on the tensioner and see how springy it is basically, if the truck has a lot of miles and hasnt been changed it should be changed anyways to prevent things like this. but buy one from vatozone or wherever and compare them, if its no different then take it back.
__________________
99 extended cab, 4.0, auto, 33s, 4x4 lifted with some stuff done

98 2wd 2.5, 5 speed, dropped with some stuff done
Reply With Quote
  #20
Old 04-30-2011, 09:51 AM
zatticus zatticus is offline
Ford Rangers

Join Date: Feb 2010
Posts: 221
Default Re: My Serpentine belt came off?

It won't even move.
Its got 185k miles on it, and I know its been changed atleast twice in its life.
__________________
1994 Ford Ranger Splash
3.0L Automatic. Not much but she's mine.

I dream of a better tomorrow, where chickens can cross the road and not be questioned about their motives.
Reply With Quote
  #21
Old 04-30-2011, 10:08 AM
ben10 ben10 is offline
slut life

Join Date: Oct 2010
Posts: 3,014
Default Re: My Serpentine belt came off?

hmmm you probably need a socket wrench to move it.
__________________
99 extended cab, 4.0, auto, 33s, 4x4 lifted with some stuff done

98 2wd 2.5, 5 speed, dropped with some stuff done
Reply With Quote
  #22
Old 04-30-2011, 10:37 AM
zatticus zatticus is offline
Ford Rangers

Join Date: Feb 2010
Posts: 221
Default Re: My Serpentine belt came off?

Probably, but if It wont move, shouldnt it be good?
__________________
1994 Ford Ranger Splash
3.0L Automatic. Not much but she's mine.

I dream of a better tomorrow, where chickens can cross the road and not be questioned about their motives.
Reply With Quote
  #23
Old 04-30-2011, 01:30 PM
ben10 ben10 is offline
slut life

Join Date: Oct 2010
Posts: 3,014
Default Re: My Serpentine belt came off?

if it wont move it might be seized up.
__________________
99 extended cab, 4.0, auto, 33s, 4x4 lifted with some stuff done

98 2wd 2.5, 5 speed, dropped with some stuff done
Reply With Quote
  #24
Old 05-01-2011, 01:54 PM
lgheel lgheel is offline
Liking the Ford Ranger Forum

Join Date: Oct 2010
Posts: 22
Default Re: My Serpentine belt came off?

Quote:
Originally Posted by zatticus View Post
Probably, but if It wont move, shouldnt it be good?
Don't think its going to move if you just spin the pulley. Need to see if it would still relieve or apply tension to the belt. You could try just pushing down on the arm to see if it moves. If that doesn't work, just use a ratchet and the correct size socket for the bolt which holds the pulley onto the tensioner assembly and try to turn the bolt clockwise in the same way you would if you were relieving tension to remove or install the belt. If it doesn't move when you do that, then the tensioner is frozen and needs to be replaced. That should keep the belt on. I would also buy a new belt since the old one could potentially have oil/PS fluid on it.

Last edited by lgheel; 05-01-2011 at 02:05 PM.
Reply With Quote
  #25
Old 05-01-2011, 02:37 PM
zatticus zatticus is offline
Ford Rangers

Join Date: Feb 2010
Posts: 221
Default Re: My Serpentine belt came off?

99% positicve my tension pulley is alright,
RAther positive I've found the cause. Water Pump Pulley has about an inch of total movement from side to side. I did indeed plan on buying a new belt, when I found out what was wrong with it. Think it could be the Water Pump Bearing/Pulley since it does have some play there?
The tensioner moved as normal while trying to put belt back on, Trying to do that now, but its hard to get it up over the tensioner while doing it by myself.
__________________
1994 Ford Ranger Splash
3.0L Automatic. Not much but she's mine.

I dream of a better tomorrow, where chickens can cross the road and not be questioned about their motives.
Reply With Quote
  #26
Old 05-01-2011, 04:19 PM
zatticus zatticus is offline
Ford Rangers

Join Date: Feb 2010
Posts: 221
Default Re: My Serpentine belt came off?

Nevermind. Figured it all out. Put the belt back on, started the truck up and all of a sudden there was a loud grinding type sound, and I look at the engine, There I see a wobbly fan clutch in front of me.
Water Pump is out,,, again. Taking it off tonight and replacing tomorrow when I can get to the part store.
__________________
1994 Ford Ranger Splash
3.0L Automatic. Not much but she's mine.

I dream of a better tomorrow, where chickens can cross the road and not be questioned about their motives.
Reply With Quote
  #27
Old 05-01-2011, 04:20 PM
RLong31 RLong31 is offline
They call me T-Dawg yo

Join Date: Jan 2011
Posts: 263
Default Re: My Serpentine belt came off?

I don't really see how your water pump pulley having play in it could cause the belt to come off? Unless it wobbles front to back, almost throwing it off? Unless it sprayed oil all over everything first, then the belt slipped off because it had oil all over it. Get the belt back on there, start it up, watch the belt to see if it stays on or slips off.

NVM... just read your last post. Glad you got it figured out.
__________________
2004 Ranger Edge 4x4, 4.0L SOHC, 4.10's, Black, Step-Side Bed, Quad Cab, 3" PA Body Lift, Underdrive Pulleys, Flowmaster 40 Catback, Mustang GT Disc Brakes
33x12.5 Goodyear Duratracs, 15x8 MB Motoring Overdrives, STX/Sport Grille, Explorer OHC & Auto-Dimming Mirror, Blacked Out Headlights & Corners,
Smoked Altezza Tail Lights, 35w 4500k Hi/Low HID Heads & Fogs, Hella 500ff's, Ultra-Gauge, Red LED Interior
Reply With Quote
  #28
Old 05-01-2011, 04:21 PM
zatticus zatticus is offline
Ford Rangers

Join Date: Feb 2010
Posts: 221
Default Re: My Serpentine belt came off?

Haha, Yeah.
Thanks. Any sites on helping show me how to remove the water pump?
I know that I have to drain coolant
Take off fan clutch
Take off belt
Loosen A/C and Powersteering Pump Mount
Take off Waterpump
And reverse?
In a very basic overview. Right?
__________________
1994 Ford Ranger Splash
3.0L Automatic. Not much but she's mine.

I dream of a better tomorrow, where chickens can cross the road and not be questioned about their motives.

Last edited by zatticus; 05-01-2011 at 04:29 PM.
Reply With Quote
  #29
Old 01-28-2013, 03:05 PM
Dperez_01 Dperez_01 is offline
Learning to use the forums

Join Date: Nov 2012
Posts: 7
Default Re: My Serpentine belt came off?

Hi, My belt fell off yesterday while I was 30k into the bush..I had a friend with a trailer that towed the truck home. I immediately shut the truck off when I lost steering and battery light came on. I just changed the tensioner pulley, idler pulley and belt last week. I did notice some play in my power steering pump pulley. (Forward and back motion) What would you guys suggest? Any ideas would be great! Thanks!
__________________
2001 Ranger Edge 3.0L 4x4 31" Sport King A/T Tires
Reply With Quote
